Using Azure Storage To Download Internet Files From ADF

2021-10-28

The Problem

ADF has the ability to download files or data from the internet using a web activity or an HTTP linked service. This works in most cases without issue. However, recently I came across an issue where an HTTP server-side issue was causing an ADF copy activity using an HTTP linked service to fail.

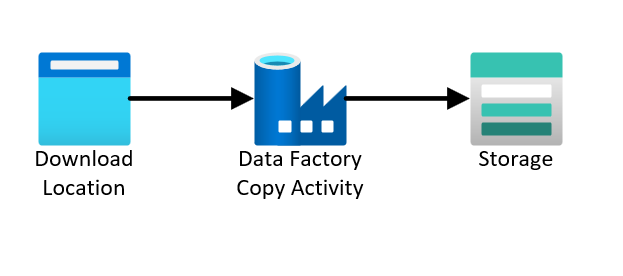

In this case, the ADF pipeline's only task was to copy a file from the internet, to Azure Storage, every day. Simple!

The symptom was the file would only download a portion of the file, not the entire file. Confusingly, No errors were recorded on the Copy Activity. It always said successful.

When running curl on the command line to download the file, we could see that the file was not downloading, and required a retry using the Range header.
The error that curl outputted was:

cURL 18 transfer closed with outstanding read data remaining

This was obviously something weird with the HTTP server (which was an Apache HTTP server).

Running wget did download the file successfully, however it did have to try multiple times and used the HTTP Range header to continue the download from where it failed.

ADF's copy activity using the HTTP linked service does not retry a download if it fails. It does not have any built in retry capabilities using the Range HTTP header from what I can tell. Further, you can not manually specify the HTTP Range header in the copy activity.

The Solution

After trying a few different things, it was apparent that ADF wasn't going to be able to actually complete the HTTP download successfully, in any way.

The solution was to use a lesser known API action of the Azure Storage Blob REST API: the Put Blob From URL action. In the Put Blob From URL action, you can ask the storage service to save a blob whose source is from an external URL.
The URL is specified in a header called x-ms-copy-source. When this action is called, a blob is placed in the path specified in the request URI, and asynchronously is copied to that location (optionally can be synchronously). Thankfully, it appears that the storage service does have some retry logic in the HTTP request, and did download the file successfully!

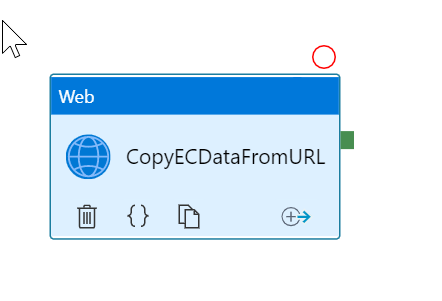

So when we jump into the ADF pipeline, we have one Web Activity that executes this HTTP request. The JSON of the pipeline is available here.

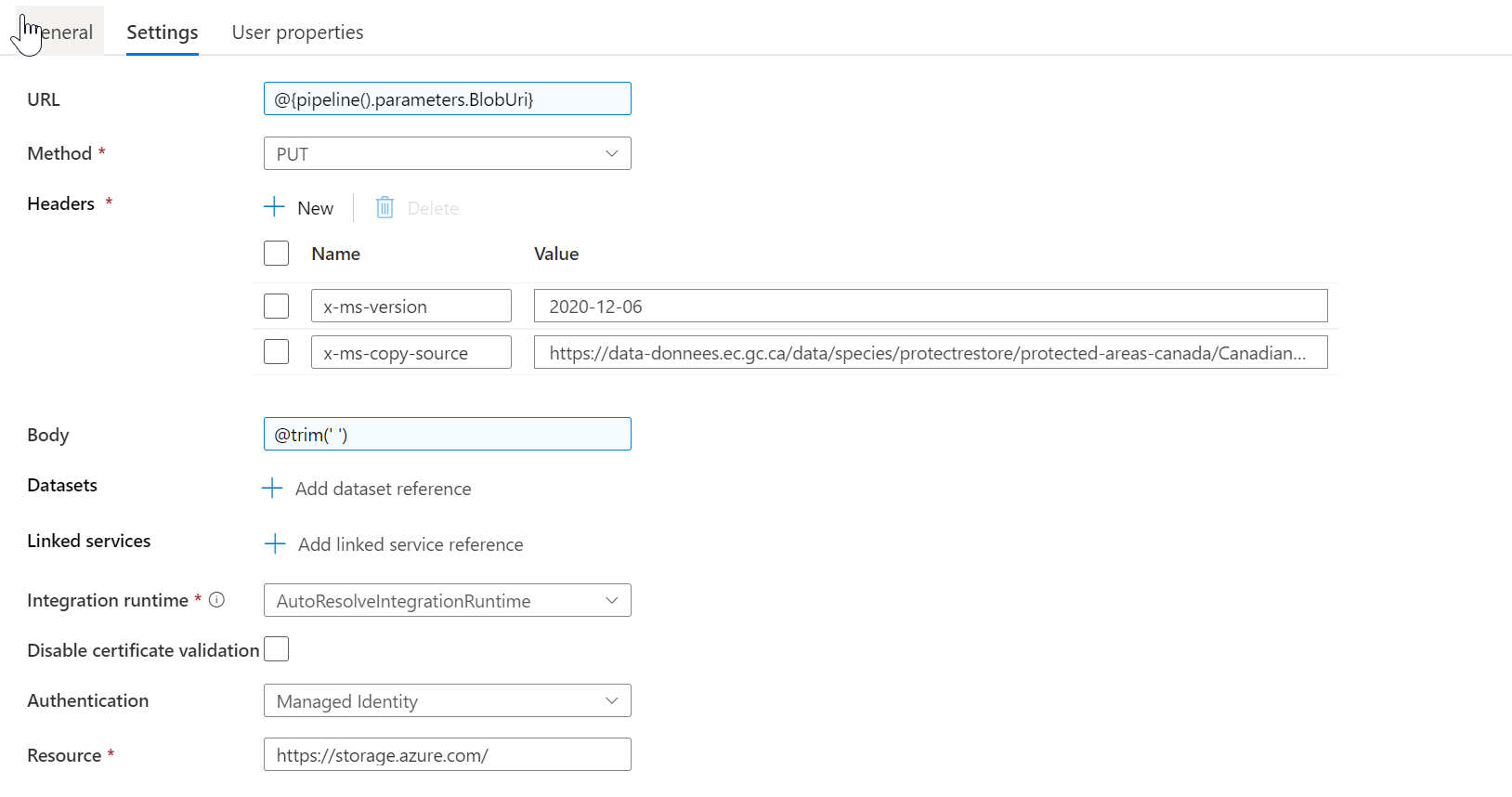

The details of the Web Activity are shown below:

Note: The Web Activity, when using an HTTP Method of PUT, requires a body in the request. But, there is no body required in the storage API request. To get around this, put a dynamic expression of @trim(''). This gets us past the UI requirement for a body, but an empty body will be sent to the storage API.

The storage REST API requires that the caller be authenticated. This can be accomplished by retrieving an OAuth token or by using a Managed Identity. In our case (and in most cases), a Managed Identity should be used.

Setting up Managed Identity Permissions

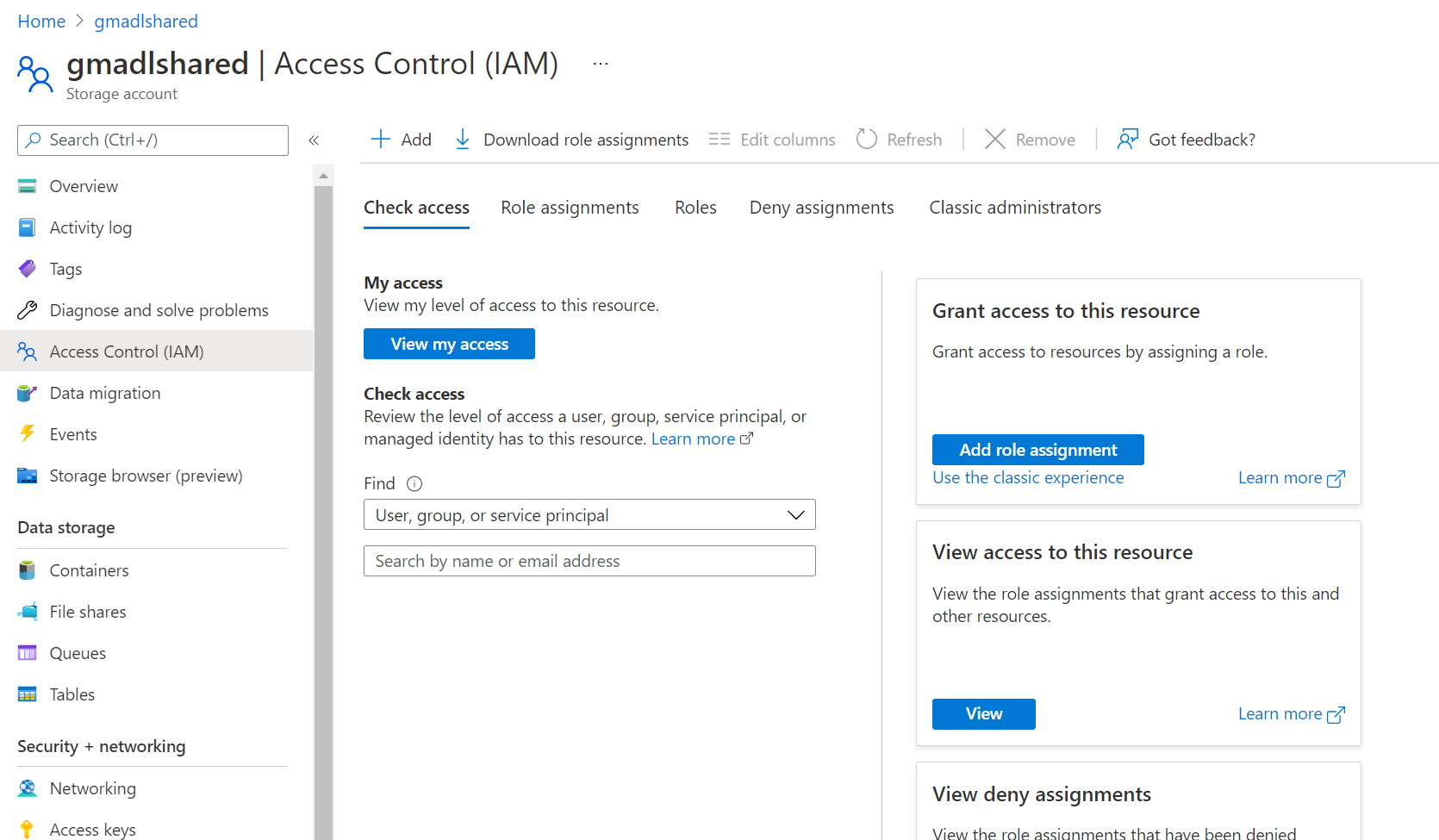

  1. An Azure Data Factory has a built in Managed Identity when deployed. To grant access to the storage account, open the storage account in the portal (this can also be accomplished by using the Azure CLI). Click Access Control (IAM).

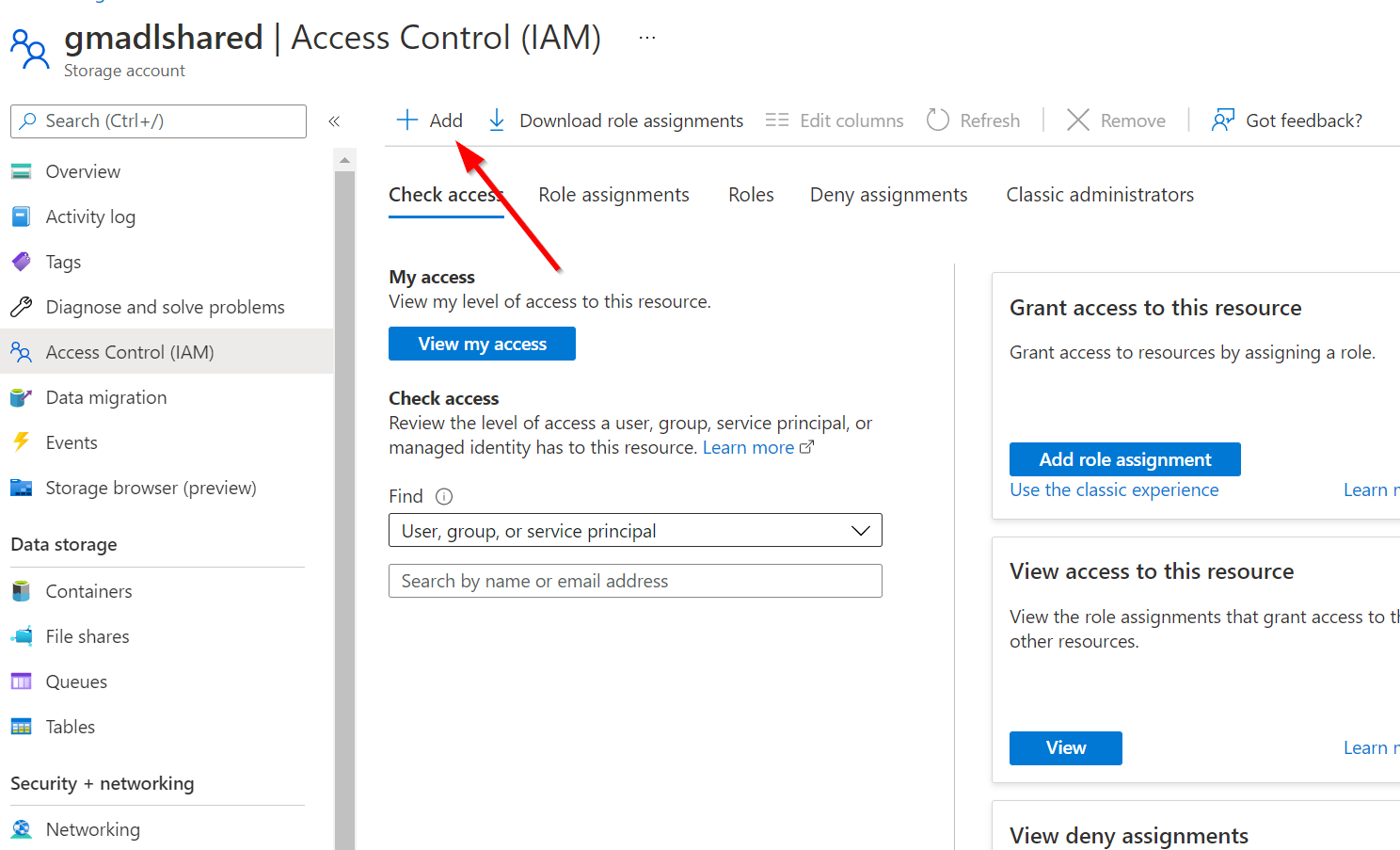

  2. Click Add, then Role Assignment

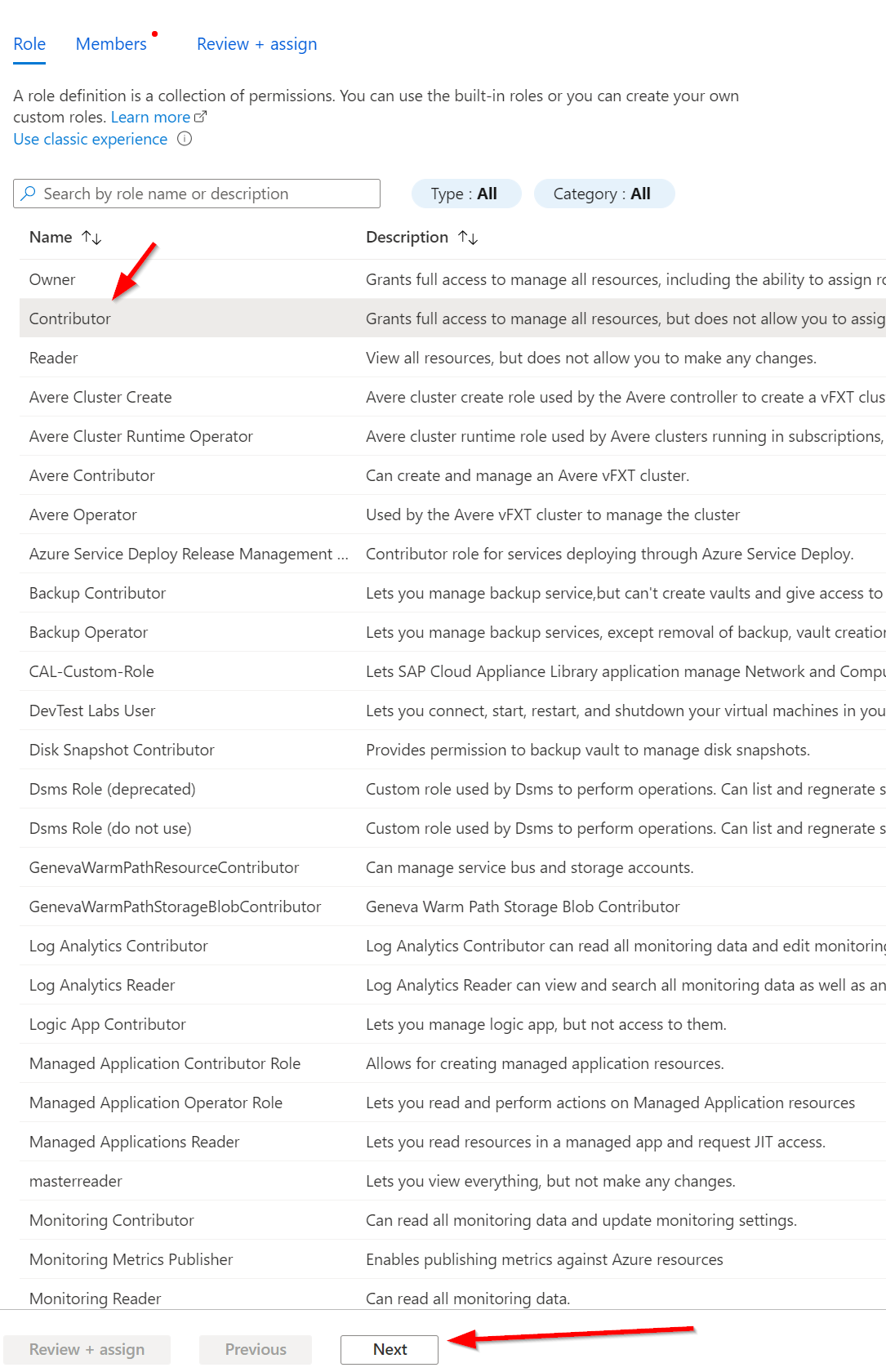

  3. Click Contributor, then Next

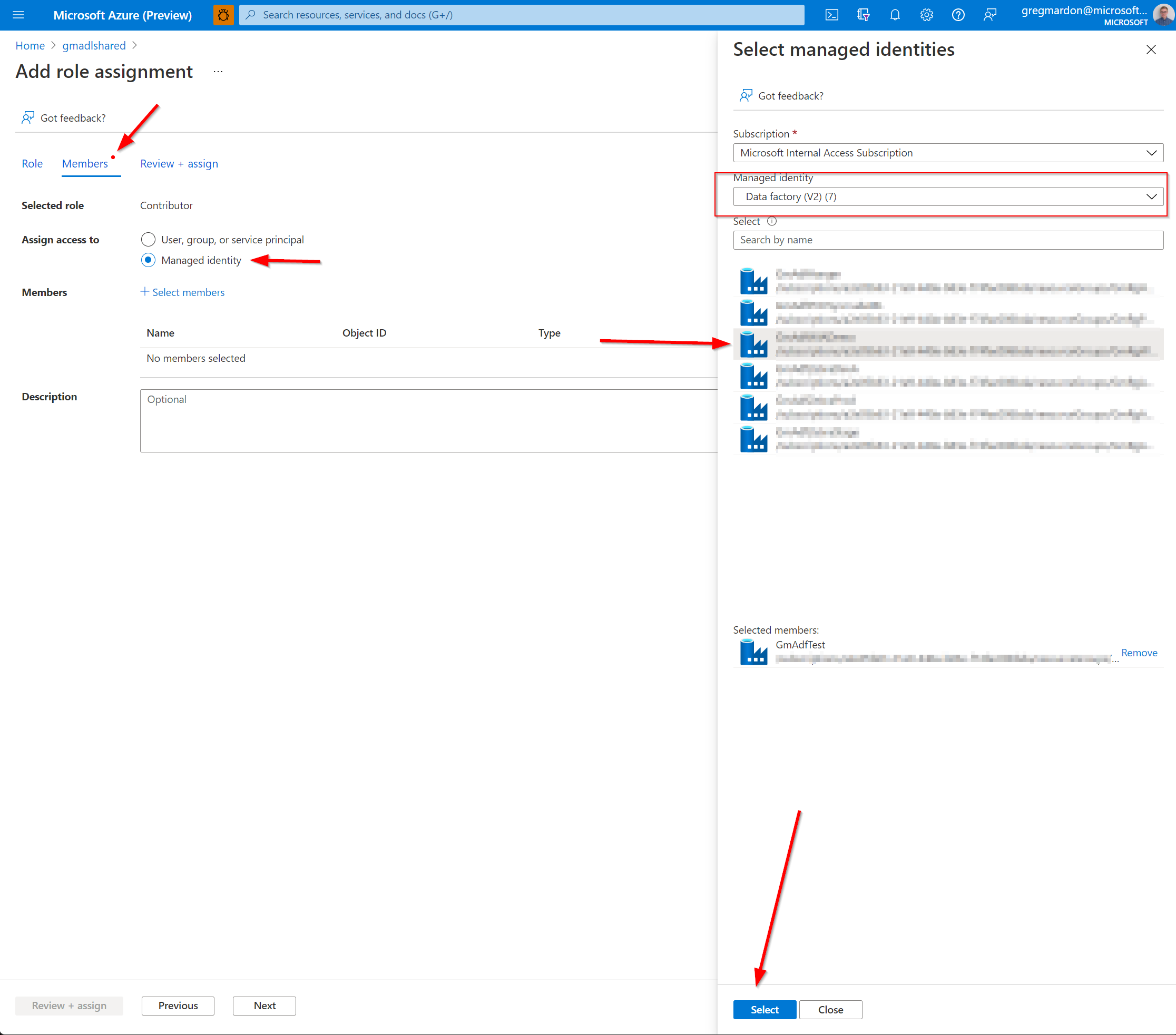

  4. Select Managed Identity for the Assign Access to field. Search for the Azure Data Factory you want to grant access to. Then click Select. When done, click Review + assign.

  5. Click Review + assign.

The ADF environment should now have access to call the Storage REST API Put actions.

Note: The ADF Managed Identity will have access to all the containers/blobs in that storage account. You can always be more granular if you wish!

Summary

Using the Put Blob From URL action on the Azure Storage REST API allowed us to download a file with retry capabilities successfully, and we were able to call this API method from ADF. A side benefit from this is, we save the data movement costs associated with a standard Copy Activity in ADF. The only cost associated is the activity run cost, which is negligible.

In our industry, we call that a win-win-win. 😊
